| Place of Origin: | China |
| Brand Name: | Jwell |
| Certification: | ISO CE UL TUV |
| Competitive advantage: | High quality, high capacity, high stability, worldwide after-sales service, more than 30 years developing experience |

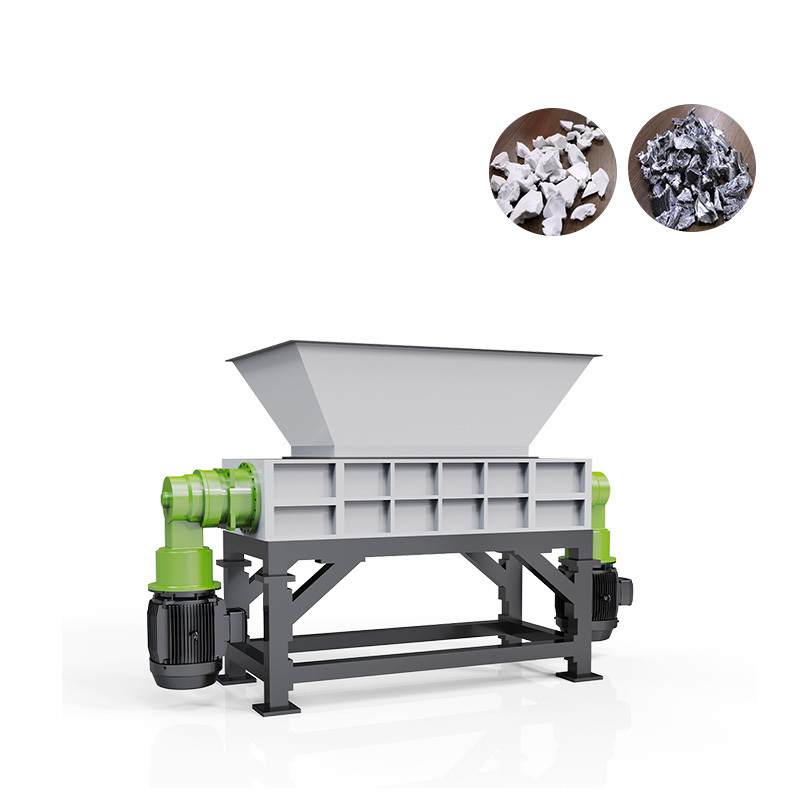

This series of shredder is specially suitable for shredding large-size plastic materials.

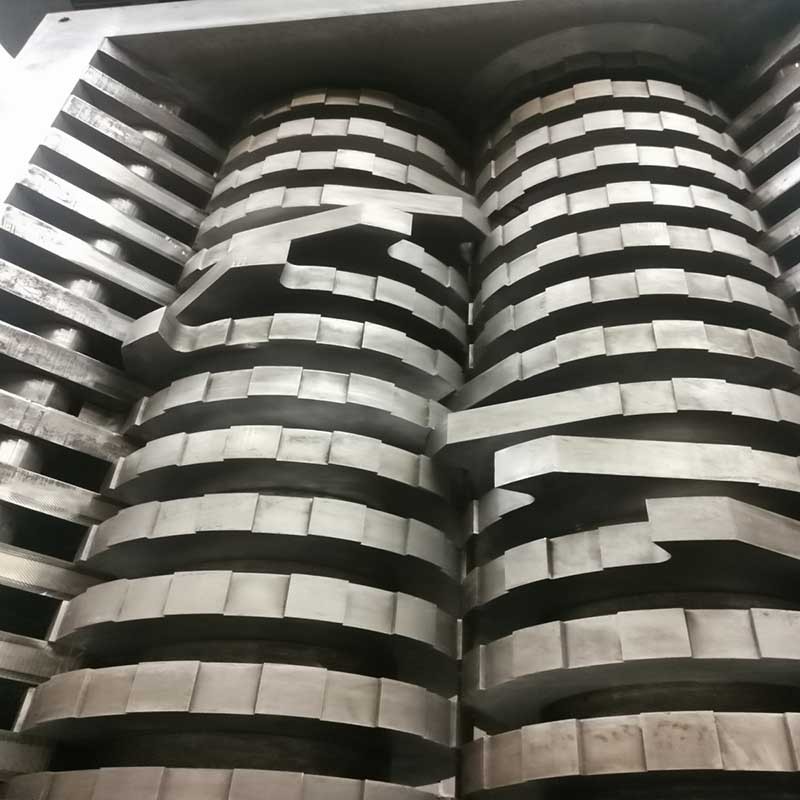

This series of double shaft shredder reflect the superiority of low speed and large torque cutting design.increase the material accumulation density, so as to reduce the transportation cost. In addition, the crushed material can also be further processed, such as material separation, cleaning, granulation and so on. It has the advantages of low noise, low energy consumption and high output.
| MODEL | Rotor Dia(mm) | Drive Power(kw) | Rotor Blade(pcs) | Blade Thickness(mm) | Crushing Chamber Size Max(mm) |
| DYTSS-32100 | Ф430 | 22*2 | 26 | 40 | 1000×800 |
| DYTSS-2380 | Ф514 | 37*2 | 26 | 50 | 1300×950 |
| DYTSS-33100 | Ф615 | 55*2 | 36 | 50 | 1800×1200 |
Process steps
